Product name: Rubber and plastic seal
O-ring is a rubber seal with a circular cross section, used to seal various fluids such as air, water, oil, etc. Because its cross section is O-shaped, it is called O-shaped rubber seal, also known as O-ring. It is the most widely used component in hydraulic and pneumatic transmission systems. It is mainly used in mechanical parts to prevent leakage of liquid and gas media under static conditions. In some cases, O-rings can also be used as axial dynamic seals for reciprocating motion and low-speed rotary motion.
O-ring is a rubber seal （For professional information such as oil seals, please consult the customer service staff.）
O-Ring Size:

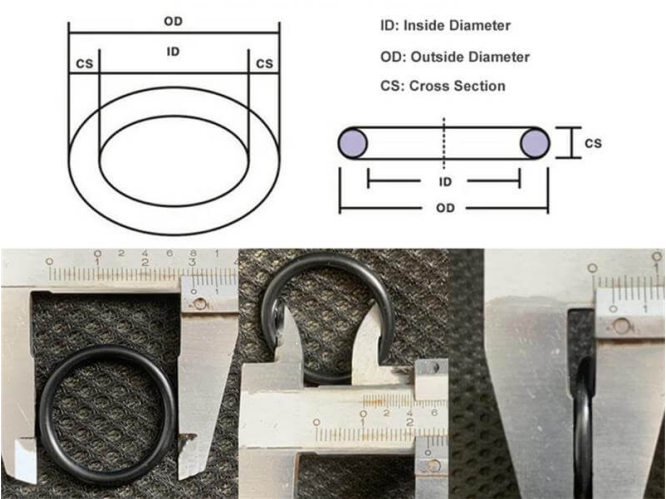

O-rings have three sizes: ID (Inside Diameter), OD (Outside Diameter) and CS/W (Cross Section/Width). Usually, it is sufficient to specify the ID and CS. A standard O-ring size will be given, for example ID20 x CS 2 mm. From the right picture, you can quickly understand that OD = ID + Cross Section * 2
OD = ID + CS * 2
Product Application:
Mainly used in mechanical parts to prevent leakage of liquid and gas media under static conditions. In some cases, O-rings can also be used as axial dynamic seals for reciprocating motion and low-speed rotary motion.
BJBCET can produce O-rings in various colors for customers, and customers need to provide standard RAL or Pantone color numbers. However, considering cost and easy identification, it is usually recommended to choose several commonly used colors, such as black for NBR, green for HNBR, brown for FKM, red/transparent (clear)/silicone for white, FVMQ for blue, PU for yellow, etc. If you order unique colors that are not commonly used, it may increase costs and require a larger minimum order quantity and longer delivery time.
We can manufacture o-rings for customers using standard o-ring sizes from different countries, such as AS568 from the United States, BS1516 from the United Kingdom, DIN 3771 from Germany, JIS B 2401 from Japan, ISO 3601 from the international, GB 3452.1 from China, etc.
Advantages :
1. The manufacturing of O-rings requires middle and senior engineers.
Thousands of ready-made molds are in the factory.
Rubber material complies with ASTM d2000.
The exterior is very smooth and the tolerances are tight.
5. High quality, reasonable price, fast delivery and best service. The precision can always meet customers' requirements.
To ensure that we produce high-quality O-rings, our company implements the following general standards:
Raw material inspection: | ASTM D2000 |
Dimensions (ID x CS) Tolerance: | ISO 3601-1 |
Appearance quality: | ISO 3601-3 Grade N (Grade S is also available) |
Hardness (Durometer) Test: | ASTM D2240 (Shore A) |
Sampling inspection: | GB/T2828.1-2019 |
Specifications:
Outer diameter * wire diameter (national standard: GB1235-76)
Wire diameter 1.0 / Wire diameter 1.5 / Wire diameter 2.0 / Wire diameter 2.4 / Wire diameter 3.1 / Wire diameter 3.5 / Wire diameter 4.0 / Wire diameter 5.0 / Wire diameter 5.7 / Wire diameter 8.6
Outer diameter * wire diameter (GB1235-76)
Wire diameter 1/1.5/2/2.4/3.1/3.5/4/5/5.7/8.6/10mm
Inner diameter * wire diameter (GB3542.1-82)
Wire diameter 1.8/2.65/3.55/5.35/7mm
Keywords
Nitrile seal ring/O-ring/box/oil-resistant and waterproof rubber ring/repair box/oil seal/seal/o-ring
